$849.00NZD incl. GST
In Stock(1 available)
1
NZ Wide Delivery
Full warranty support
Pickup in Onehunga
Additional Information

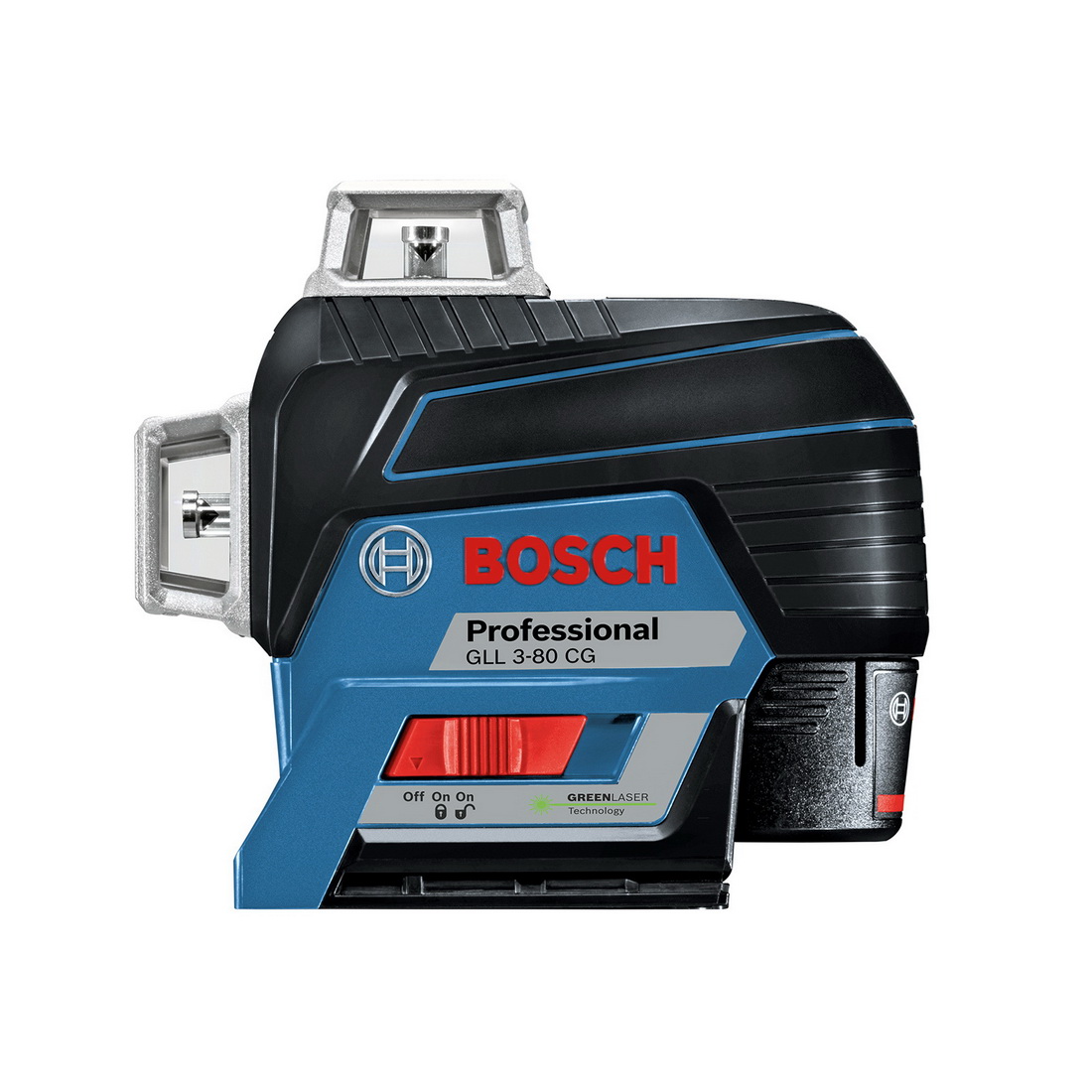

Green supreme visibility in 3 x 360°. Simply connected.
| Working range with receiver | 120 m |
| Working range | 30 m |
| Accuracy | ± 0.2 mm/m |
Scope of delivery
| 4 x 1.5 V LR6 battery (AA) | ✓ |
| AA1 alkaline battery adapter 1 608 M00 C1B | ✓ |
| Carrying case | ✓ |
| Clamp 1 609 B00 839 | ✓ |
| Laser target plate | ✓ |
| Pouch | ✓ |
| Universal Holder BM 1 Professional 0 601 015 A00 | ✓ |
Technical data
| Laser diode | 500 – 540 nm, < 10 mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range, value | 30 m |
| Working range | 30 m |
| Working range with receiver, value | 120 m |
| Working range with receiver | 120 m |
| Working range without receiver | 30 m |
| Accuracy | ± 0.2 mm/m |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 12 V Li-Ion battery 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 6 h (Li-ion) and 2.5 h (4 x AA) in 3-line mode |
| Tripod thread | 1/4", 5/8" |
| Weight, approx. | 0.9 kg |
| Colour of laser line | green |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 7 |
Product Details
- SKU
- 0 601 063 U80
- Weight
- 1.8 kg
- Dimensions (L×W×H)
- 28.6 × 32.7 × 12.2 cm
- Category
- LASERS/LASER MEASURES
- Availability
- In Stock
