Product Overview
Includes

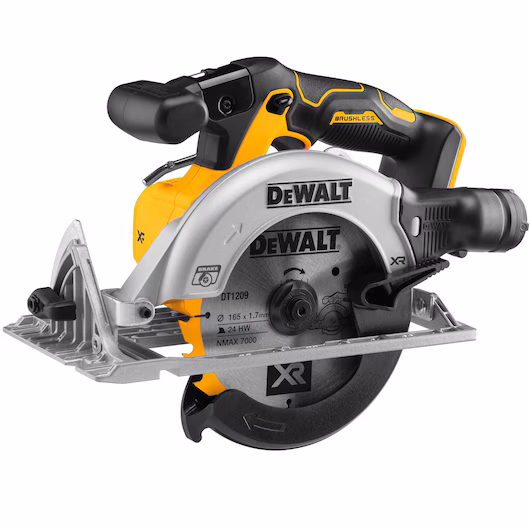

Ready to take on a variety of your cutting applications. The DCS565 18V XR 165mm Circular Saw combines performance and versatility and features a powerful brushless motor that delivers 4,950 rpm for fast, accurate, and consistent cutting. Tool-free depth and bevel adjustments provides a max depth of cut of 55mm at 90° along with a max bevel of 50°.
Additional Features
Specifications
- 18V XR BRUSHLESS MOTOR: Enhanced efficiency and durability.
- MAX DEPTH OF CUT: 165mm blade delivers 55mm at 90°.
- TOOL FREE ADJUSTMENT: Quick and easy adjustment of depth and bevel settings.
- EASE OF USE: Bevel capacity up to 50 degrees.
- ALUMINIUM SHOE: Reduces weight while providing high durability.
- ADDITIONAL CONTROL AND WORK SAFETY: Provided by lock off switch and electronic motor brake.
- DIRECT COMPATIBILITY WITH AIRLOCK SYSTEM: Ensuring easy and secure connection with DEWALT dust extractors for cleaner and safer jobsite.
- BUILT IN DUST BLOWER: Clears dust and debris from the cut line for increased accuracy.
- BUILT-IN RAFTER HOOK: Safe and convenient storage on the jobsite.
- BRIGHT LED: For improved cut line visibility.
- 3 YEAR GUARANTEE: Tool covered by extended warranty, subject to registration.
- PART OF THE CORDLESS 18V XR SYSTEM: Fully Compatible With 250+ Solutions.
|
Blade Bore [Metric] |
20 mm |
|
No Load Speed (RPM) |
4950 |
|
Product Height [Metric] |
175 mm |
|
Uncertainty K (Vibration) |
1.5 m/s² |
|
Product Weight [Metric] |
2.8 Kg |
|
Blade Diameter [Metric] |
165 mm |
|
Max. Depth of Cut at 45º [Metric] |
42 mm |
|
Max. Depth of Cut at 90º [Metric] |
55 mm |
|
Power Output |
808 W |
|
Product Pack Quantity |
1 |
|
Product Length [Metric] |
314 mm |
- (1) 18V XR Brushless 165 mm Circular Saw
- (1) 165 mm 24-Tooth TCT Saw Blade
- (1) Hex Key
- (1) Rip Fence
- (1) Dust Extraction Port
Product Details
- SKU
- DCS565N-XJ
- Weight
- 4 kg
- Dimensions (L×W×H)
- 39 × 24 × 20.5 cm
- Category
- CIRCULAR SAWS, 18V XR
- Availability
- Out of Stock
