The MILWAUKEE® M18™ Interior Single Slope Rotary Laser 305m (1000') Green features impact protection and a simplified setup. Designed for harsh jobsite conditions, we ensure your laser is protected, withstanding up to a 1.5m drop. Usable in both horizontal and vertical orientations and 3 modes: Rotational Mode, Sweep Mode and Plumb Point Mode it provides users the opportunity to best meet any needs they may have. The Rotary Laser is compatible with ONE-KEY™ to track the tool’s location and manage inventory. The all-in-one Detector (RD300G) features Centre Find, for easy, fast, and automatic long-range alignment. This detector can detect beams up to 305m (Diameter) and features a simplified menu navigation with a user-friendly design. The amplified rare earth magnets provide the detector with a strong hold onto steel studs.

FEATURES

Withstands 1.5m drops with reinforced housing

Water and dust resistant

Automatic alignment with Centre Find

Simplified menu navigation

Horizontal plane accuracy +/- 1.6mm at 30m

Vertical plane accuracy +/- 3.2mm at 30m

305m (diameter) working range with RD300G

300, 600, 1,200 RPM

Sweep Mode scans variable angles

Vertical plumb dot

Low/High Bump Sensitivity Mode

5/8"-11 mounting thread

ONE-KEY™ tool tracking & management

SPECIFICATIONS

PLATFORM M18™ / ONE-KEY™

VOLTAGE 18V

RPM 300, 600, 1,200

RUNTIME 26 Hours

DIMENSIONS 54 x 307 x 259mm

WEIGHT 3.4kg

WARRANTY 5 Years

WORKING RANGE With RD300G: 305m (1000') (Diameter)

HORIZONTAL PLANE ACCURACY +/- 1.6mm at 30m

VERTICAL PLANE ACCURACY +/- 3.2mm at 30m

SELF-LEVELING RANGE +/- 5°

SELF-LEVELING ORIENTATION Horizontal & Vertical

DROP RATING 1.5m

LASER COLOUR Green

MOUNT THREADING 5/8"-11

LASER CLASS Class 2

PLUMB POINT ACCURACY +/- 3.2mm at 30m

WHAT'S INCLUDED

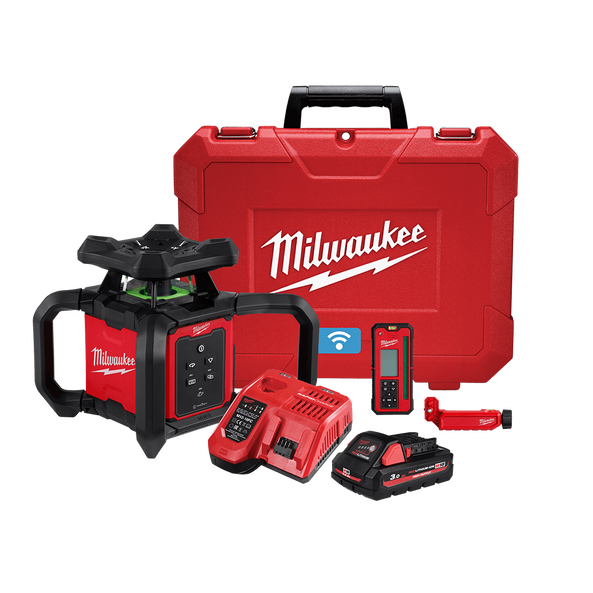

MILWAUKEE M18™ INTERIOR SINGLE SLOPE ROTARY LASER 305M GREEN KIT
