Description

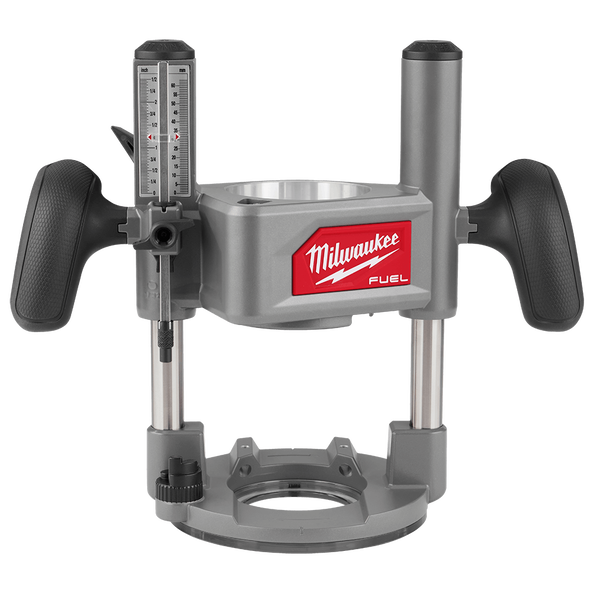

The MILWAUKEE® 1/2" Router Plunge Base expands the versatility and functionality of the MILWAUKEE® M18 FUEL™ 1/2“ Router (sold separately). The plunge base delivers smooth plunges at precise depths for accurate cuts in a wide variety of applications. The 1/2" Router Plunge Base features 63.5mm (2-1/2") of total plunge capacity, a 6-step depth turret at 3.18mm (1/8") increments, and a depth rod with micro-adjustment to provide quick, repeatable cuts. A cam lock securely holds the tool and allows for base changes with the modular console, while the depth scale contains measurement markings in both inches and millimetres for increased ease of use. The plunge base is compatible with the 1/2" Router Template Base, 1/2" Router Track Adapter (RBA2), dust shroud and edge guide (all sold separately).

Additional Information

FEATURES

Sturdy machined aluminium body for stable plunges

Maximum depth capacity of 63.5mm (2-1/2")

6-step depth stop turret with 3.18mm (1/8") step increments

Depth scale markings in inches and millimeters

Depth rod with micro-adjustment knob for quick and accurate depth adjustments

Compatible with Milwaukee® 1/2" Router Template Base, 1/2" Router Track Adapter (RBA2), dust shroud and edge guide (all sold separately)

SPECIFICATIONS

PLUNGE DEPTH CAPACTIY 63.5 mm (2-1/2")

DIAMETER Base: 152.4mm (6")

LENGTH 325 mm (12-3/4")

WIDTH 152.4 mm (6")

WEIGHT 2.3kg

WARRANTY 5 Year Tool

HEIGHT RANGE 211 mm (8-1/4”) - 275 mm (10-7/8”)

WHAT'S INCLUDED

(1) 1/2" Router Plunge Base [RBA1]

(1) Dust Shroud

(1) Universal Hose Adapter

(1) U-Rod

(1) Thumb Screws

(Not Included) M18 FUEL™ 1/2" Router [M18FR120B]

(Not Included) 1/2" Router Track Adapter [RBA2]

(Not Included) Battery & Charger
