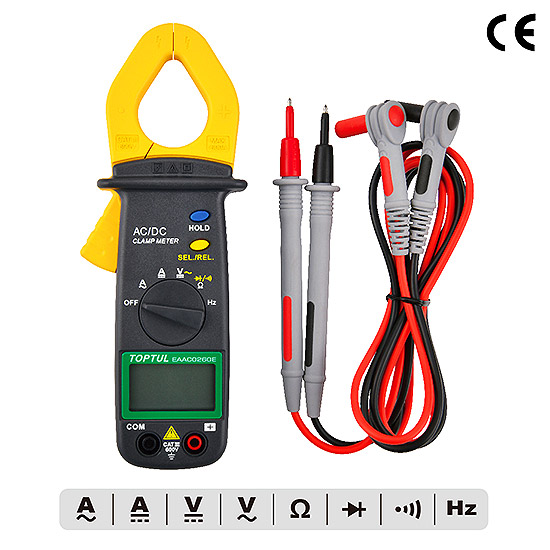

TOPTUL EAAC0260E Digital Clamp Meter

Digital clamp meter with basic measuring functions Test lead set with test tip (red/black) Central dial switch Large LCD with 3-3/4 digit display 4000 counts Max. diameter for clamp jaw: Ø30mm Low battery indicator and auto shut off (after 30 minutes) Additional Features: Data hold, auto range, auto power off selection Function: AC and DC voltage measurement AC and DC current measurement Resistance measurement Diode test Continuity test with buzzer Frequency measurement

SPECIFICATIONS
AC Voltage	4V / 40V / 400V / 600V
DC Voltage	400mV / 4V / 40V / 400V / 600V
Resistance	400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
AC Current	400A / 600A
DC Current	400A / 600A
Diode	1V
Continuity Check	400Ω
Hz Frequency	5Hz / 50Hz / 500Hz / 5kHz / 50kHz /100kHz
Operating Environment	0 ~ 50°C (32 ~ 122°F) at < 80% R.H. (non-condensing)
Storage Environment	-10 ~ 60°C (14 ~ 140°F) at < 70% R.H. (non-condensing)
Operating Altitude	Altitude up to 2000m
Power Supply	Battery 1.5V AAA x 2 pcs (included)
Testing Standard	IEC 61010-1 / IEC 61010-2-032 / IEC 61010-2-033
Measurement Category	CAT Ⅲ 600V
Pollution Degree	2
Dimension	190mm (L) x 71mm (W) x 37mm (H)
Weight	Approx. 200g
